TireNex Core
$499.00
4-channel wireless TPMS receiver with CAN bus output. Passively captures pressure and temperature data from 315 MHz, 433 MHz, or BLE sensors and streams it directly to your Holley Terminator X, Dominator, or any CAN-equipped ECU (if supported). Optional touch screen display for sensor data available to retrofit older vehicles without TPMS systems or aftermarket ECUs.
6 in stock (can be backordered)
Description

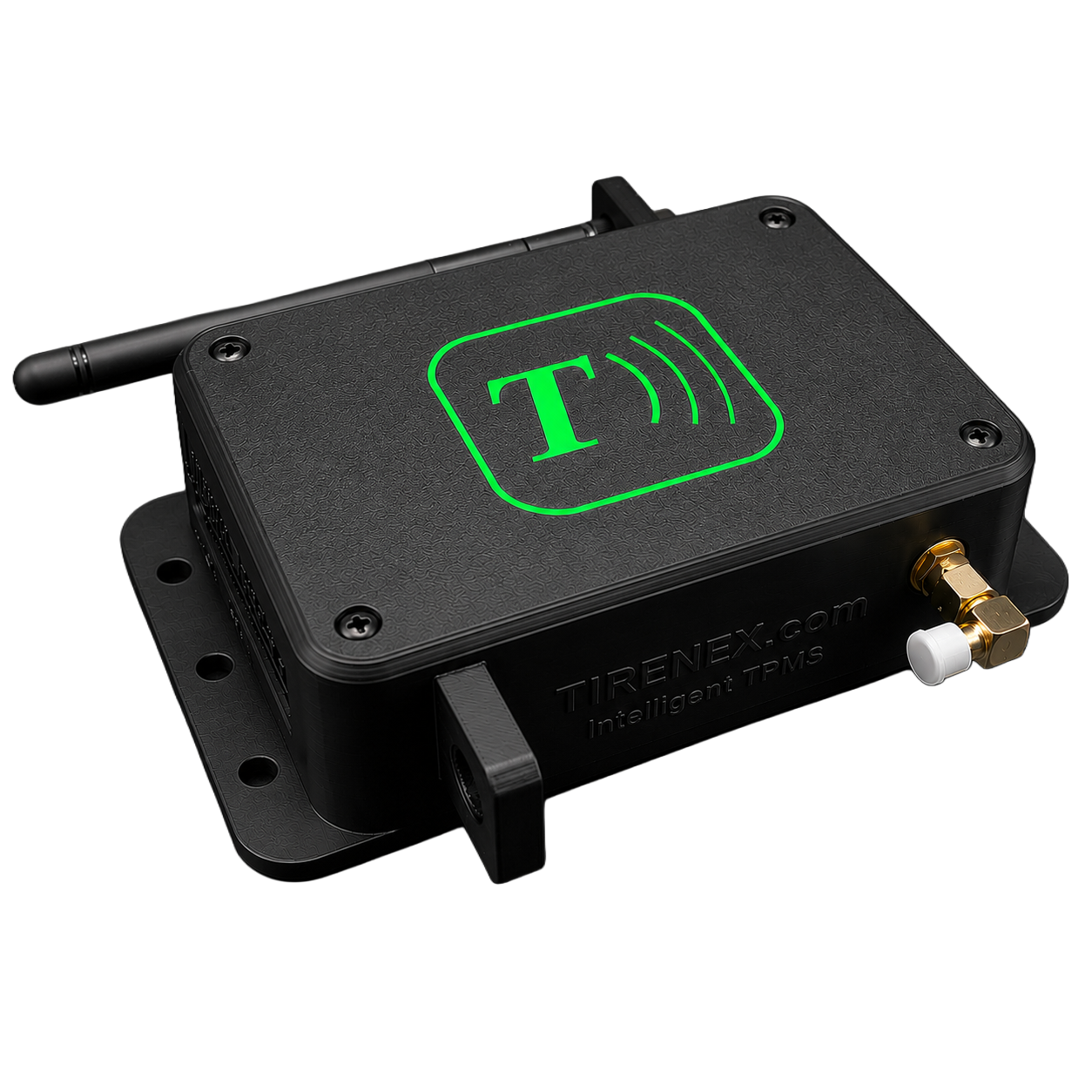

The TireNex Core is a 4-channel wireless TPMS receiver that passively captures tire pressure and temperature data from your existing sensors and outputs it either directly to your aftermarket ECU via CAN bus or to an optional 2″ touch screen mounted in your vehicle.
Key specs:
- 4-channel simultaneous tire monitoring
- Multiple sensor support (315 MHz + 433 MHz + BLE)
- 1 Mbit/s CAN bus output (29-bit extended frames)
- Holley Terminator X and Dominator support to input as custom parameter for datalogging/display
- Solid ABS enclosure
- 12V automotive power with reverse polarity protection
- ESD protection on all external lines
- PTC fused power inputs
- OTA Firmware Updates (no usb cable required)
- Portal access from your phone to change most settings (WIFI Capable)
What’s included:
- Tirenex Module
- 12V/GND wire pigtail (20″~)
- 10′ antenna extension
- BLE Antenna
- 1 year warranty**
- Website support
- Future firmware updates for more sensors & more aftermarket ecus
Recommended for:
- Passenger Cars
- Small Trucks
- Vintage Vehicles
Options:
- Touchscreen Display (includes 36″ harness)
- Display Mounting Kit (vehicle specific or universal)
- Sensors (315/433/BLE)
All units are personally hand assembled here in the USA
*compatible sensors must be used from list, future sensors will be added
**1 year warranty against manufacturing defects that renders the unit inoperable
Note: slight surface imperfections may exist on 3d components and does not impact the ability of the units
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 12 × 12 × 6 in |
